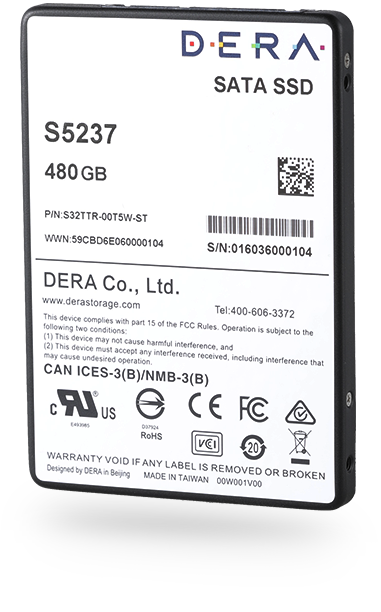

S5237

DERA S5237 (Read Intensive)  enterprise SATA SSD, offering a variety of capacity options, deliver outstanding performance, low latency and high reliability advantages to your storage system.

Functional Features
    • SATA 3 compliance

    • 3D TLC NAND

    • 2.5-inch 7mm form factor

    • 240GB & 480GB capacity options

    • Up to 550/ 520MB/s sequential R/ W, Up to 97K/ 52K random R/ W IOPS

    • End-to-End data integrity protection

    • Power loss data protection

Product Features
Reduce Storage TCO
Accelerate Workloads
Data Integrity Protection
The S5007 series SATA SSD provides a variety of capacity options and adopts the standard 2.5-inch form factor commonly used in enterprise levels. Larger capacity drives require lower power consumption and cooling conditions than conventional HDD, and advanced 3D TLC NAND applying reduces the storage total cost of ownership (TCO). DERA's S5007 series SATA SSD are ideal solution to upgrade your storage system.
S5007 series SATA SSD fully utilize and maximize the SATA 3 interface, deliver sustained performance up to 550MB/s in Sequential Read and 520MB/s in Sequential Write. Optimized for read-intensive and mix-use workloads, outstanding performance accelerates your data center, media streaming, online transaction processing (OLTP) applications. Lower latency and QoS (Quality of Service) offer lower response time and higher service level.
The intense hardware built-in LDPC ECC units throttle errors occurred during access to NAND device, ensure your data be protected throughout the whole life of drive.
End-to-End data protection safeguards the data from corruption at the whole way from host device to the NAND flash.
Power loss data protection ensures data integrity of the drive and protects against data corruption in the event of power loss or system failure.
Application and Load
  • Database

  • Virtualization

  • Streaming, CDN

  • Big Data Analytics

  • Software Defined Storage

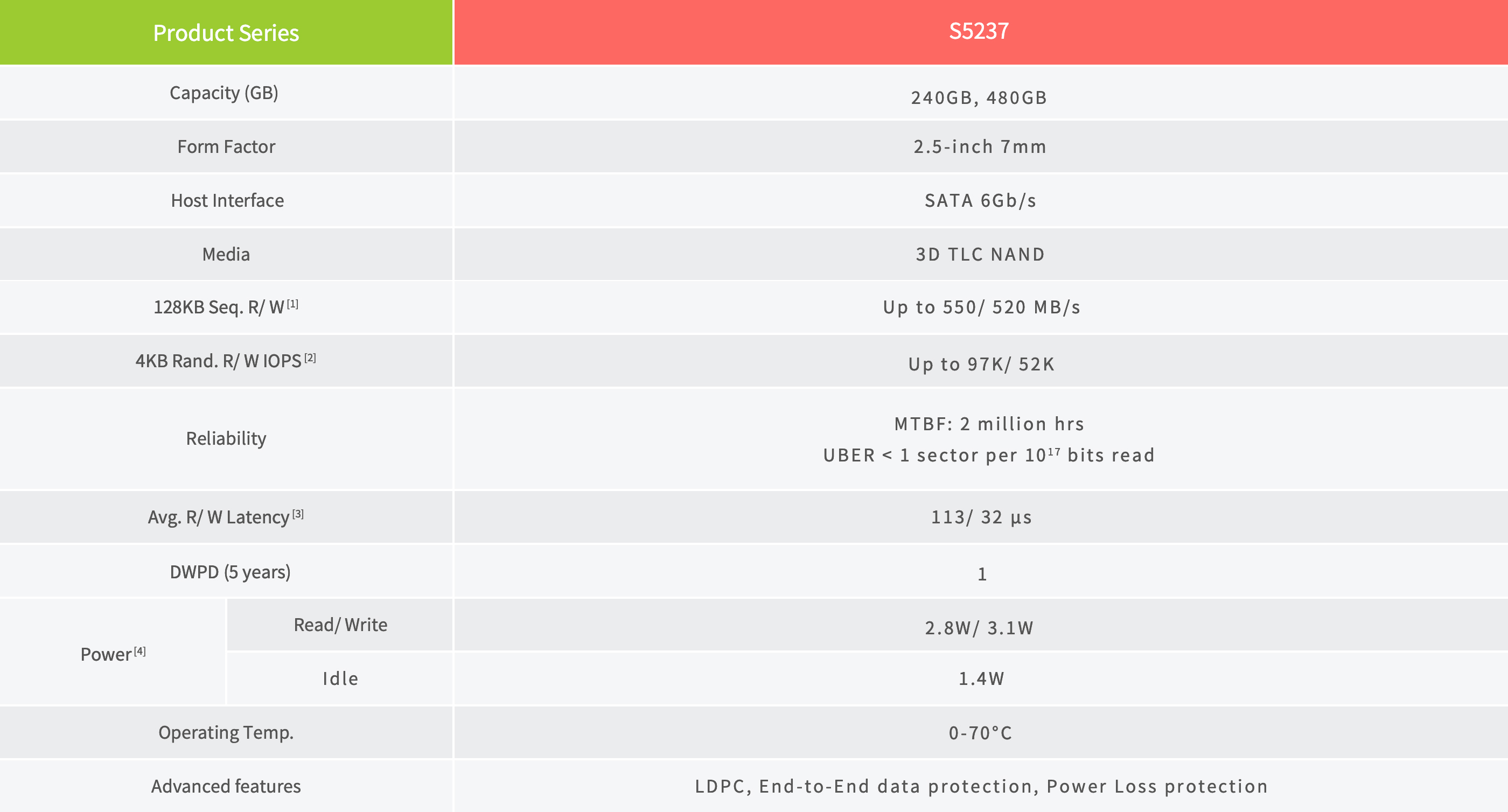

Product Parameters
Product SeriesS5237
Capacity(TB)240GB, 480GB
Form Factor2.5-inch 7mm
Host InterfaceSATA 6Gb/s
128KB Seq. R/ W [1]Up to 550/ 520 MB/s
4KB Ran. R/ W IOPS [2]Up to 97K/ 52K
ReliabilityUBER < 1 sector per 1017  bits read
Avg. R/ W [3]113/ 32 µs
Power [4]R/ W2.8 W/ 3.1 W
Idle1.4 W
DWPD(5 years)1
Temperature0-70℃
FeaturesLDPC, End-to-End data protection, Power Loss protection


[1] 100%LBA, 128KB sequential R/ W, 32 queue depth with 1 worker.

[2] 100%LBA, 4KB random R/ W, 32 queue depth with 1 worker.

[3] 100%LBA, 4KB random R/ W, 1 queue depth with 1 worker.

[4] 100%LBA, Sequential R/ W power consumption is measured with 128KB, 32 queue depth and 1 worker. Random R/ W measured with 4KB, 32 queue depth and 1 worker.

*Performances measured using FIO in linux OS, result may differ according to testing platforms.1MB/s = 1,000,000 bytes/ second

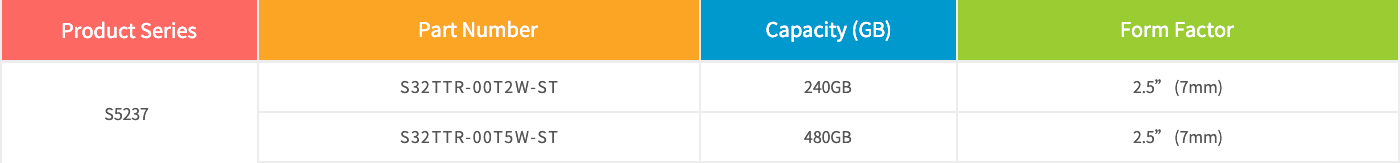

Model List
产品系列型号容量(GB)外形
S5237S32TTR-00T2W-ST2402.5" 7mm
P34UTR-04T0U-ST4802.5" 7mm
