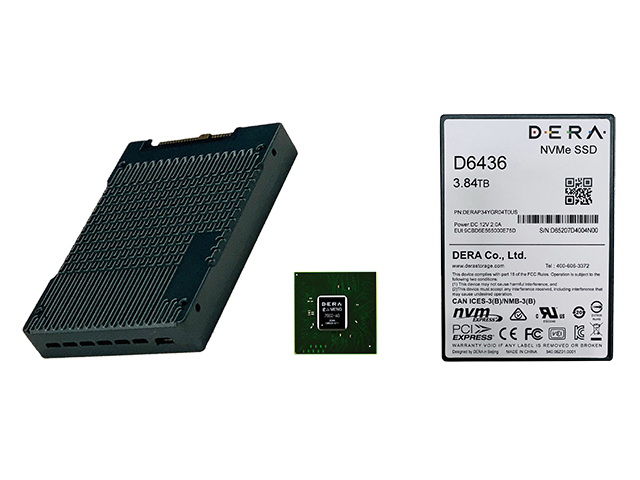

D6436/D6456

DERA D6436/ D6456 Series NVMe SSD is DERA's High performance enterprise product line. These products utilize a Gen3 PCIe interface and are compatible with NVMe 1.4. The application of YMTC 128-layer 3D TLC high-speed flash memory based on the Xtacking architecture provides products with high throughput and IOPS, low latency, and good QoS characteristics. D6436/D6456 Series product line has an efficient firmware architecture which to optimize drive performance and endurance and is available in high capacities up to 7.68TB. The cyclic redundancy checks and end-to-end data path protection improve the product reliability. It features thermal monitoring and protection, SMBus for out-of-band management.


DERA D6436/ D6456 Series are compatible with mainstream OS and virtualization system. The performance meets the requirements of database and virtualization application. DERA D6436/ D6456 try to keep a balance between performance and cost, to help customers to reduce TCO.


Functional Features

    • PCIe 3.0 x4

    • NVMe 1.4 compliant

    • Data integrity of enterprise class

    • 3.2TB ~ 7.68TB capacity options

    • Up to 3.4/ 3.2GB/s sequential R/ W bandwidth, Up to 810K/ 390K random 4KB R/ W IOPS

    • YMTC 128-layer 3D TLC

    • Native driver support of mainstream operating systems and hypervisors

    • UEFI bootable

    • Surprise hot-pluggable

Product Features
Software-hardware Co-designed
Data Integrity
High Performance
The 2nd Generation ASIC controller of DERA D6436/ D6456 NVMe SSD is developed by DERA with software-hardware co-designed methodology, achieved enterprise-class data integrity, many built-in hardware acceleration units, sophisticated NAND flash management, and performance aggregation in a power-efficient way. Architected with advanced YMTC 128-layer 3D TLC NAND, D6436/ D6456 deliver reliable and high performance NVMe storage solution. D6436/ D6456 offer endurance and capacity options of 3.84TB, 7.68TB at 1 DWPD (5yrs), and 3.2TB, 6.4TB at 3 DWPD (5yrs).
DERA D6436/ D6456 NVMe SSD realized intense hardware LDPC units, end-to-end protection on the whole data paths against silent errors, adaptive redundancy protection among independent NAND units, and protection against unexpected power-losses, which are forged into an integrated protection for user data. In addition, D6436/ D6456 NVMe SSD constantly sense drive's healthy and react in time accordingly, which is available for host management software to perceive and handle potential drive failure.
DERA D6436/ D6456 NVMe SSD achieved high performance with low latency. Sustained random write IOPS up to 400K, random read/ write latency low to 79/ 11us. Optimized FTL algorithm sufficiently anticipate the extreme conditions of highly-intense workloads and workload variations with sophisticated scheduling and controls over front-end I/O demands and FTL backend activities, ensuring a stable performance in all cases. D6436/ D6456 NVMe SSD deliver a performance consistency above 90% in significantly heavy random I/O workloads.
Application and Load

  • Database

  • Cloud Computing

  • Streaming, CDN

  • Big Data Analytics

  • AI/ ML/ DL Training

  • Software Defined Storage

  • Banking & Telecom

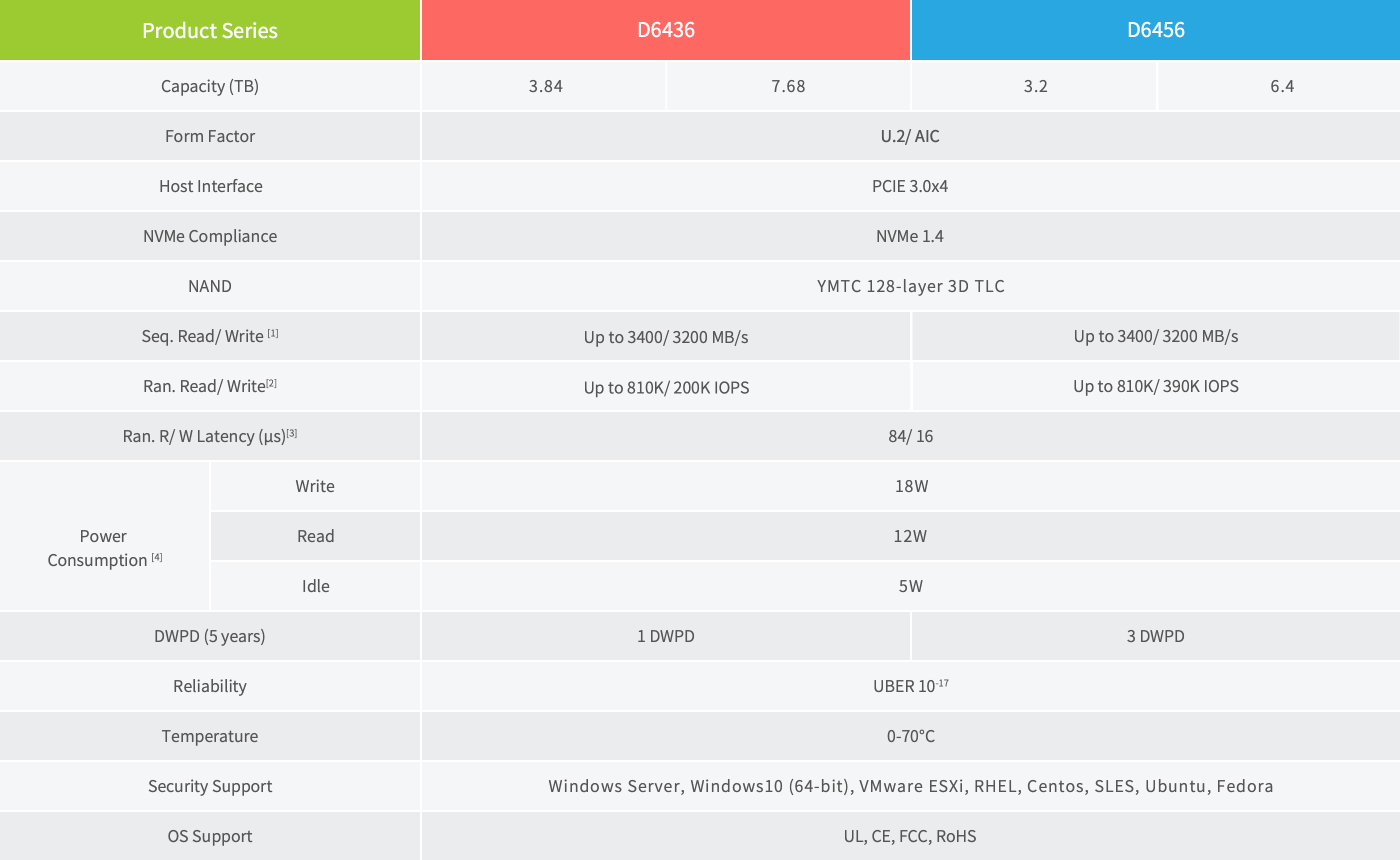

Product Parameters
Product SeriesD6436D6456
Capacity3.84TB，7.68TB3.2TB，6.4TB
Form FactorU.2/ AIC
Host InterfacePCIe 3.0 x 4
NVMe ComplianceNVMe 1.4
NANDYMTC 3D TLC NAND
Seq. Read/ Write [1]Up to 3400/ 3200 MB/sUp to 3400/ 3200 MB/s
Ran. R/ Write IOPS [2]Up to 810K/ 200KUp to 810K/ 390K
Ran. R/ W Latency [3]84/ 16
Power [4]Write18W
Read12W
Idle5W
DWPD（5 years）1 DWPD3 DWPD
Reliability误码率10-17
Temperature0-70℃
OS SupportWindows Server, Windows10 (64-bit), VMware ESXi, RHEL, Centos, SLES, Ubuntu, Fedora
Security Support
UL, CE, FCC, RoHS


[1] 100%LBA, OIO64 (TC=1, QD=64).

[2] 100%LBA, measured with OIO256 (TC=4, QD=64).

[3] 100%LBA, OIO1 (TC=1, QD=1).

[4] 100%LBA, Sequential R/W power consumption is measured with 128KB, OIO64(TC=1，QD=64) which is lower than Random operation. Random R/W measured with 4KB, OIO256 (TC=4, QD=64). Scope trigger over 100ms sample period.

*Performances measured by FIO tool on linux, result may differ according to testing platform.1MB/s = 1,000,000 bytes/ second.

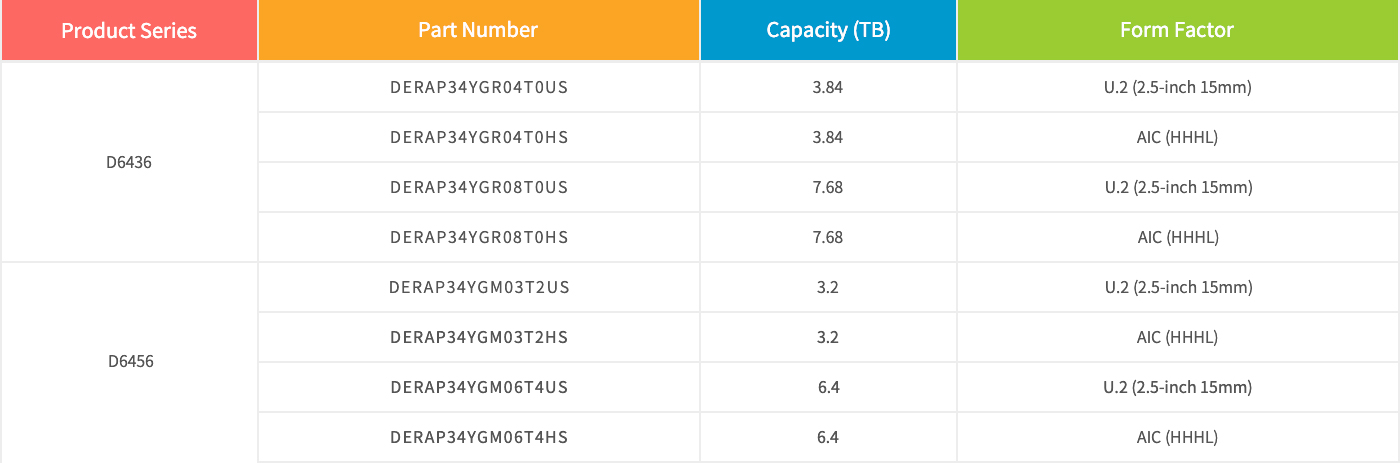

Model List
Product SeriesPart NumberCapacity（TB）Form Factor
D6436DERAP34YGR04T0US3.84U.2 (2.5-inch 15mm)
DERAP34YGR04T0HS3.84AIC (HHHL)
DERAP34YGR08T0US7.68
U.2 (2.5-inch 15mm)
DERAP34YGR08T0HS7.68AIC (HHHL)
D6456
DERAP34YGM03T2US3.2U.2 (2.5-inch 15mm)
DERAP34YGM03T2HS3.2AIC (HHHL)
DERAP34YGM06T4US6.4U.2 (2.5-inch 15mm)
DERAP34YGM06T4HS6.4AIC (HHHL)
